Krizby:

RDNA3 uarch is a major failure, kinda like Vega. No idea how RTG can tackle that many problems (both uarch improvement and chiplets design) with way less R&D budget than Nvidia, perhaps just wishful thinking from RTG team.

barbacot:

Maybe AMD idea of chiplets is the wrong one - maybe another architecture is needed and this one is not for the future but for the garbage bin.... Nvidia will go monolithic another generation at least and who knows? maybe they will drop the monolithic design for another thing - not chiplets, or not AMD idea of chiplets - maybe... Lots of speculations and I remembered that the root of evil for AMD GPU's is from ATI times - they genuinely believed that Nvidia 200 will be the last monolithic gpu from Nvidia - their big mistake: https://www.techpowerup.com/63216/ati-believes-geforce-gtx-200-will-be-nvidias-last-monolithic-gpu Also something to laugh - a blast from the past - someone seeing Intel chiplets gpu's as a "huge" treath for Nvidia: https://seekingalpha.com/article/4321159-nvidia-faces-huge-threat-from-intels-chiplet-gpu-approach I especially liked this one: 😀 That proves how wrong predictions are in this industry.

Krizby:

RDNA3 uarch is a major failure, kinda like Vega. No idea how RTG can tackle that many problems (both uarch improvement and chiplets design) with way less R&D budget than Nvidia, perhaps just wishful thinking from RTG team.

Undying:

AMD will eventually fix all issues

user1:

given the untapped clock headroom on the 7900 series gpus, if they can get the power consumption under control, significant uplift is on the table without much work, so a respin makes alot of sense. also, chiplets are inferior to monolith in all domains except price, that is the point, it significantly reduces cost, that is why they do it. moving the memory controllers and the cache to a separate die is a clever move, as it allows them to share silicon allocation between many different products, and reallocate them as needed much more easily and much faster. also leaves the door open to other kinds of products, for instance amd could build an HBM based MCD package, which could be " drop in" affair, without a creating a new die like with navi 12(hbm) vs navi 10(gddr6).

cucaulay malkin:

except then 4 cores was a luxury high end item, while now 8/16 is pretty much the standard, and a competing 13700kf costs less, performs the same in games and almost 30% better in applications. actually, I'm wrong here. the competition is not 13700k, but a $330 13700 since 7800x3d is locked too and tops at 6000mhz ddr5.

tunejunky:

i assume you meant for gpu's as chiplets are vastly superior for cpu. if you don't believe me look to Intel

tunejunky:

no, the Q6600 wasn't a luxury item. it was a productivity beast for the day and a mainstay of oem builds. in fact, it was only available w/ oem builds for the first six months (in US) after release. the Q6600 is the cpu that made DIY builds "a thing" instead of a tiny niche hobby

cucaulay malkin:

Com it was the highest core count you could get. look where 7800x3d is on that application performance index compared to 7950x, for productivity it's like last gen 5900x asnd slower than new i5, that is also unlocked by the way.

user1:

a monolithic epyc chip would use less power for instance

wavetrex:

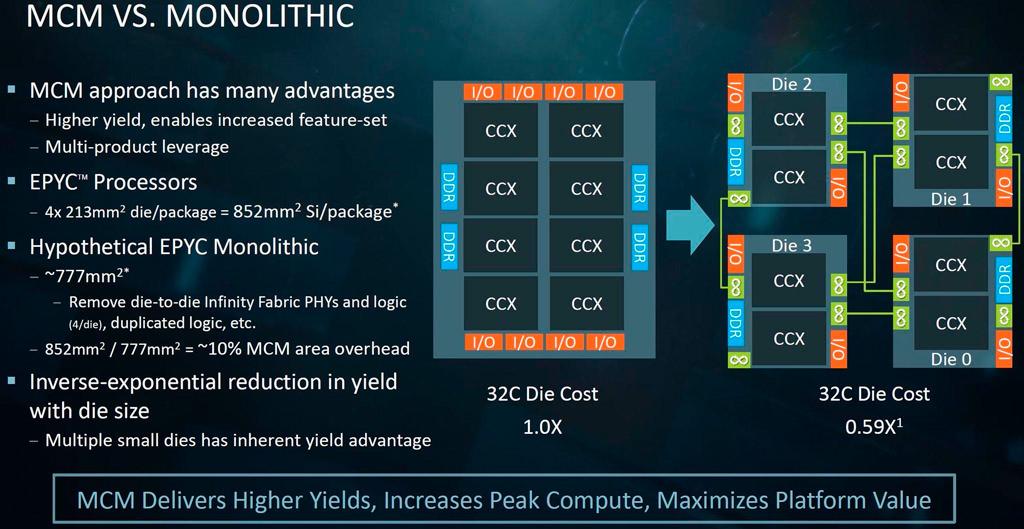

Most likely it would be unproduceable. The defect rate would be so high with such a big and complex chip that it's quite likely none of them would make it out of the lithography machines intact, and even the highest model would be cut down. But the main reason for chiplets was explained above... cache and I/O have already stopped scaling. I wonder how many node shrinks do core transistors still have... I fear we are very very close to the "end of silicon"

tunejunky:

no, the Q6600 wasn't a luxury item. it was a productivity beast for the day and a mainstay of oem builds. in fact, it was only available w/ oem builds for the first six months (in US) after release. the Q6600 is the cpu that made DIY builds "a thing" instead of a tiny niche hobby

Horus-Anhur:

The goal of the L3 cache on the big RDNA3 is not performance, but to save cost. The dies used on the L3 cache are still on N7, and unlike RDNA2, are separate chips. And there is a latency spike when hit hits the L3. Something that does not happen on RDNA2 or NAVI33. I still does what it's supposed to do, as a memory attached last level, it reduces fetches to vram. But for other things it won't do. For example, that cache latency would compromise performance on the whole GPU, if they used chiplets for an L2. Even for WGPs, it might be problematic as there would be the need to have a general front end, to issue work waves without contention.

Crazy Joe:

This why NVIDIA's approach was to increase the amount of L2 cache in the RTX 4xxxx series. A larger L2 cache has more benefits than adding a larger L3 cache, as it sits closer to the actual compute cores and has a much lower latency. with AMD's approach you gain some performance compared to reading from VRAM, but the latency of L3 is typically at least 4 to 5x higher than that of L2.

user1:

its possible to do, such chips exist, they are just ridiculously expensive, the kind of thing you find in a multimillion dollar mainframe, there are also "wafer scale" chips, which allow the entire water to be used, defects can be bypassed or areas disabled as mentioned. we still have ways to go on silicon, euv is kind of a reset, all of the tricks used to get the feature size smaller with duv, can be done again , sub 1nm is doable, then you have stacking, ect. the real question is how heat density is going to be dealt with. the end of silicon isn't something i would worry about for at least 10 years, and it will probably take much longer than that for a transition to occur.

tunejunky:

i get what you're saying but the realities of manufacturing contradict you. not all defects can be routed around and there are far too many variables to have any sort of production run - consistancy and precision are requirements. also fwiw, the most powerful mainframes in the world are made w/ AMD Genoa/Bergamo chiplet based cpus. seven of the top 10 supercomputers in the world, incl the top three are AMD based

tunejunky:

also fwiw, the most powerful mainframes in the world are made w/ AMD Genoa/Bergamo chiplet based cpus. seven of the top 10 supercomputers in the world, incl the top three are AMD based

tunejunky:

i get what you're saying but the realities of manufacturing contradict you. not all defects can be routed around and there are far too many variables to have any sort of production run - consistancy and precision are requirements. also fwiw, the most powerful mainframes in the world are made w/ AMD Genoa/Bergamo chiplet based cpus. seven of the top 10 supercomputers in the world, incl the top three are AMD based

Horus-Anhur:

No it's not. The L3 cache on RDNA2 and small RDNA3 are almost as fast as the L2 on Ampere. Ada Lovelace L2 latency is a bit higher than Ampere's, because of it's bigger size. And AMD's L2 cache has almost half the latency of the L2 on NVidia's GPUs. I don't think most people understand how good the cache system on AMD's GPUs really is.
