ASRock X99 WS-E10G Released has Intel 10G BASE-T LAN
ASRock’s latest X99 WS-E/10G is a motherboard, workstation board hybrid that boasts Dual Intel 10G BASE-T LAN ports powered by an Intel X540 Ethernet controller chip, plus Dual Intel gigabit LAN ports powered by two Intel I210AT Ethernet controller chips.
Add in the fact that users may use Teaming to combine all four connections into a single one with a gigantic 22Gbps bandwidth!
What makes ASRock X99 WS-E/10G so fast is the onboard Intel® X540 Ethernet controller. This single chip is capable of supporting dual 10G BASE-T LAN ports, which are ten times faster than your ordinary gigabit LAN and usually only seen on server boards. Purposely, this motherboard also supports Windows server operating systems, thus it may also be used to build a small server or workstation.
Aside from the two 10G BASE-T LAN ports, there are two more Intel® gigabit LAN ports each supported by an Intel® I210AT Ethernet controller, and best of all, support for quad LAN Teaming. By running IxChariot to test our quad LAN setup’s internet bandwidth, we’ve reached a mind blowing 20360 Mb/s!
As usual, to support 4-Way SLI or CrossFireX, especially if you wish to have all four of your graphics cards running at x16/16/16/16 mode, adequate PCIe bandwidth is required. That’s where the two additional PLX PEX 8747 bridge chips come in handy.
While other brands are trying to reduce costs by using less and less power phases on their X99 motherboards, ASRock X99 WS-E/10G adopts an uncompromisable 12 power phase design just like the rest of ASRock’s X99 Super Alloy Series. This ensures that the motherboard is more performance/power efficient and operates at cooler temperatures compared to its adversaries.
Casual PC or server workstation, you decide. The back of ASRock X99 WS-E/10G is mounted with ultra short screws, and the length of the CPU back plate is less than 3mm! Again, this special design is for people who tend to install this motherboard into a 1U server chassis.
ASRock X99 WS-E/10G is a crossover between a hardware enthusiast motherboard and a workstation. Identical to other ASRock X99 Super Alloy motherboards, it supports LGA 2011-3 CPUs ranging from 18 core 160W Xeon® E5-1600/2600 v3 processors to unlocked Intel® CoreTM i7 CPUs. Same as the rest of the X99 motherboards, it has eight DDR4 memory slots that support quad channel ECC technology, UDIMM/RDIMM memory modules up to 3200+(OC) and a maximum of 128GB capacity. On the other hand, the storage options are about as good as X99 Extreme11. Users may find 12 SATA3 ports, 1 SATA Express 10Gb/s connector, 1 PCIe Gen2 x4 M.2 slot, a SATA DOM and a USB DOM.
Anxious for more speed? Get connect with the 10G BASE-T LAN and quad teaming on ASRock’s X99 WS-E/10G, it gives fast internet speed a whole new definition.
Review: ASRock X99 OC Formula - 10/14/2014 09:32 AM
Join us as we review the ASRock X99 OC Formula motherboard, a flagship X99 motherboard from ASrock with nice features. The OC Forumula comes with not one but two M.2. slots, wide tweaking options an...
ASRock X99 Extreme11 Motherboard - 10/13/2014 08:20 AM
One thing that you can't possibly miss on this monstrous motherboard is storage connectors! ASRock X99 Extreme11 boasts a total of 18 SATA3 connectors on the side of the motherboard, including 10 SAT...
ASRock X99 OC Formula Photos - 08/27/2014 08:17 AM
Check it out, ASRock is showing their ASRock X99 OC Formula. The motherboard can supply a claimed "1300W" of maximum CPU power, using its 12-phase CPU VRM. Memory is care of a 4-phase VRM...
ASRock X79 Extreme11 SSI-CEB Motherboard - 08/06/2012 06:01 AM
Check out the new SSI-CEB motherboard from ASRock, the X79 Extreme11. Based on Intel X79 Express Chipset, the board supports for LGA2011 processors and is equipped with eight DDR3 DIMM memory slots (u...
ASRock X79 boards, including Micro-ATX model - 11/01/2011 01:42 PM
Asrock issued a press relelease showing ASRock X79 motherboards. The top-of-the-line model is the X79 Extreme9, it has eight memory slits, five PCIe x16 slots and an add-on card with Ethernet and audi...
Member
Posts: 43
Joined: 2014-05-22
ASRock X99 WS-E Series pictures.
X99 WS-E

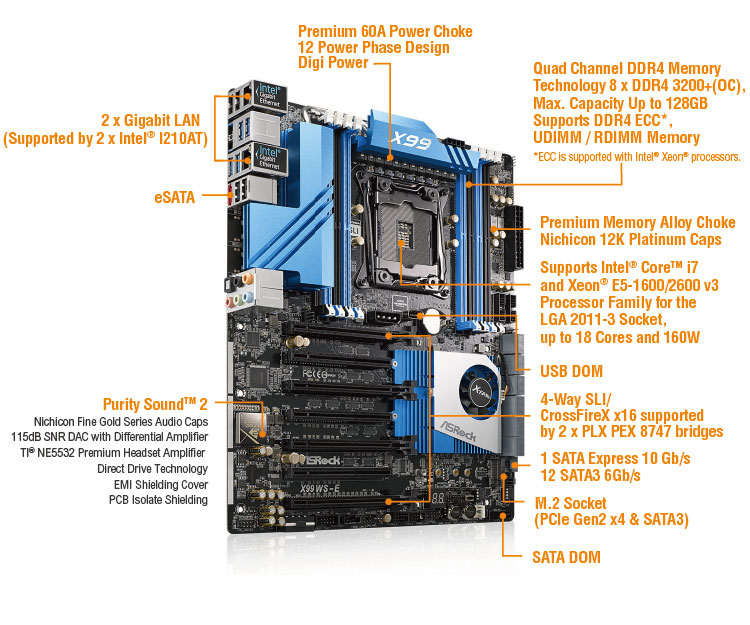

http://www.asrock.com/mb/layout/X99%20WS-E.jpg
http://www.asrock.com/mb/photo/X99%20WS-E(L1).jpg
http://www.asrock.com/mb/photo/X99%20WS-E(L2).jpg
http://www.asrock.com/mb/photo/X99%20WS-E(L3).jpg
http://www.asrock.com/mb/photo/X99%20WS-E(L4).jpg
http://www.asrock.com/mb/photo/X99%20WS-E(L5).jpg
X99 WS-E/10G

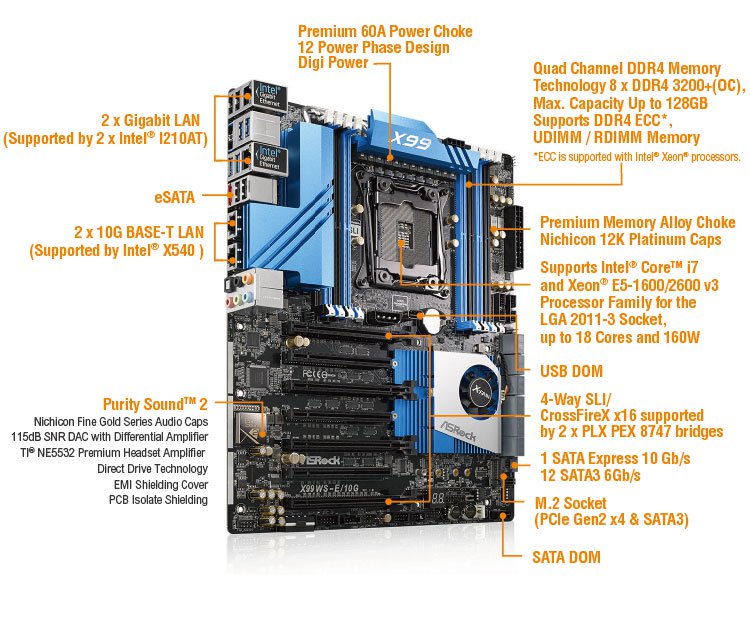

http://www.asrock.com/mb/layout/X99%20WS-E10G.jpg
