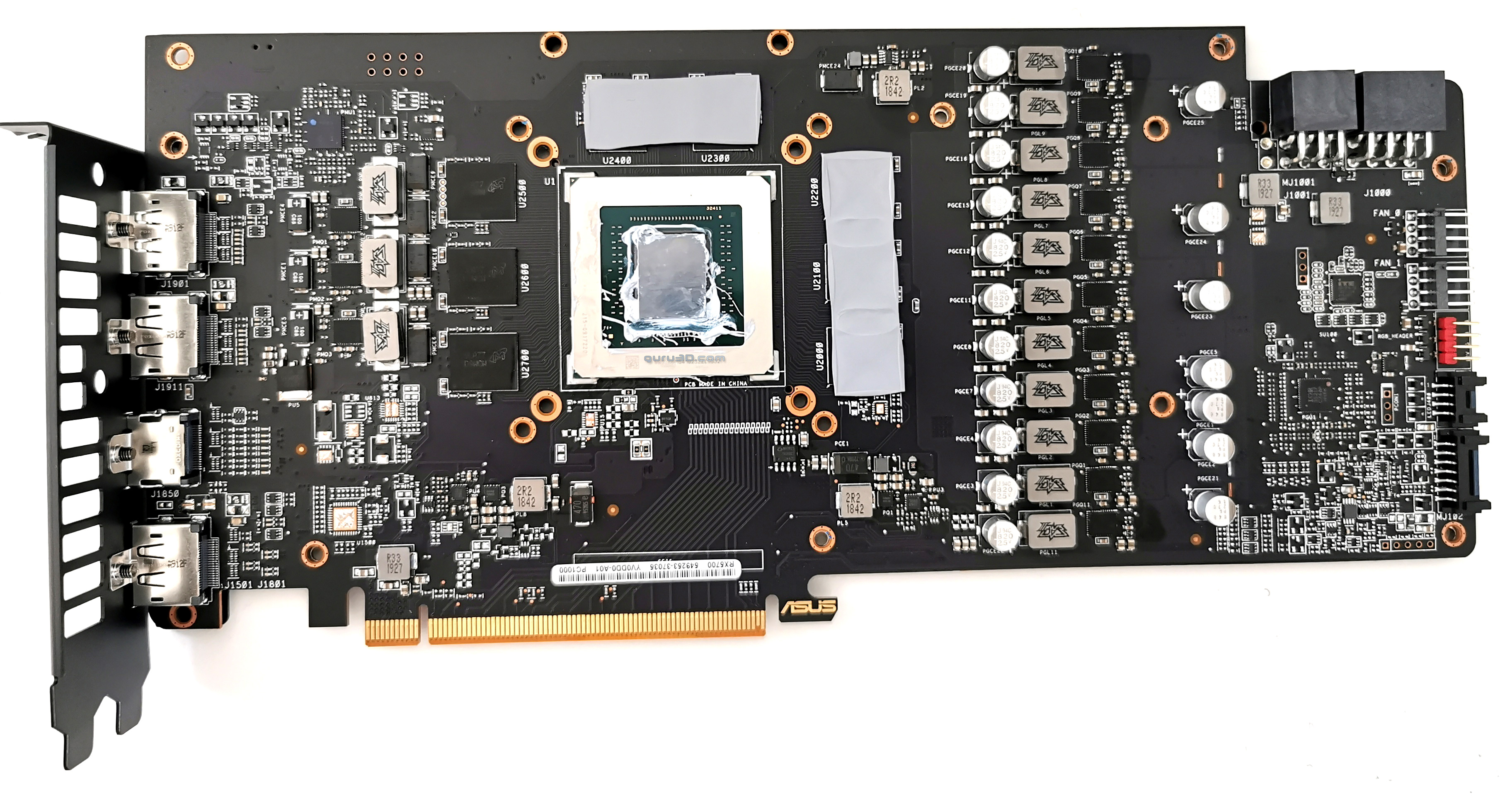

In the photos below you can see a number of things. this card was fitted with 8GB GDDR6 memory chips fabbed by Micron. The photos show the 7nm based NAVI 10 GPU. Power delivery is configured as 10+3 phases for GPU and memory.
Super high-res photo:
